Raintech 1500 Gallon Above Ground Complete Rain Harvesting Package

$2,838.00
SKU:
RT1500
Availability:
Call for Freight Quote: 877-331-7008
Weight:
0.00 LBS

Product Overview

Complete Rainwater Harvesting Package

This is a complete rainwater harvesting package.  The beauty of the system is that everything you need is included.  We've spent many years finding the right equipment and identifying the essential components of a rainwater harvesting system.  Our goal was to create an affordable rainwater system that really works.  Given our global water crisis, we believe everyone should be harvesting rainwater and this is the perfect place to start.

System Includes:

Pre-Tank Filter: 16" HIGH FLOW LEAF FILTER BASKET W/ LIGHT GUARD

A 16" High Flow Leaf Filter Basket w/ Light Guard is included with this rain harvesting tank system.

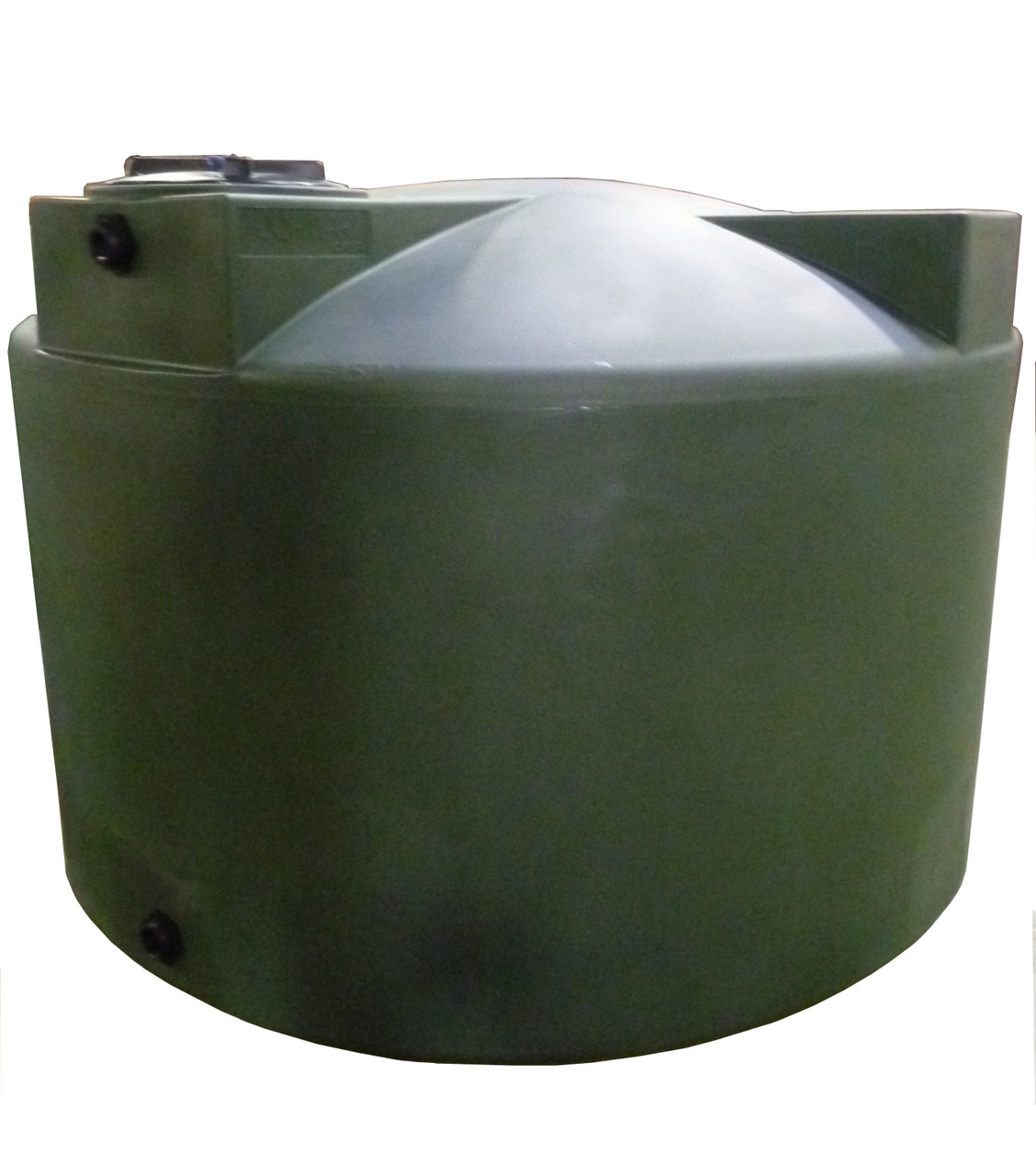

Storage Tank: 1500 GALLON WATER STORAGE TANK

Color Options: Mocha, Green, Black, Dark Brown

    • 96”D x 95”H
    • 360 lbs.
    • 2" Bottom Bulkhead w/ Plug
    • 1.5" Top Bulkhead w/ Plug
    • 4 Tie Downs on Dome
    • 3 Year Warranty

Pre-Pump Filter: 1.5" FLOATING INTAKE FILTER -FINE MESH- WITH 10' HOSE

Premium floating filter with 1.5" NPT connections and a 1.5" diameter suction hose. With this unique filter, the pump will avoid sucking in settled debris from the tank's bottom and floating debris from the tank's top. A floating intake filter pulls the cleanest water from the best part of your tank- just below the surface. This improves the life of your pump and provides you with the highest quality water from your tank.


Reducer Bushing:  2" to 1" REDUCER BUSHING

2" to 1" Reducer Bushing: This schedule 40 bushing adapts 1" threaded PVC pipe inside a 2" threaded PVC fitting. MIP (male threaded) x FIP (female threaded) connections.


Pump to Tank Connection:  STAINLESS STEEL FLEX HOSE

Tank to Pump Assembly makes your life simple by easily connecting to the 2” NPT outlet of the tank via the reducer bushing to the 1" inlet on Grundfos MQ Successor pump. The included (2) 1" poly nipple, 1"D x 24"L stainless steel flex hose, 1" ball valve and thread tape allows you to easily connect/disconnect your pump to your tank.


Pump:  MQ SUCCESSOR 3-45 W/ BLUETOOTH

The MQ Successor is a 1hp, above ground, on demand, self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure.

 Dekorra Model 102 Rock Enclosure (27"L x 21"W x 25"H)

Pump Cover: PUMP HOUSING

Color Options: Mocha, Green, Black

29"L x 17"W x 20"H




Post-Pump Filter: 1" POLYPROPYLENE Y STRAINER

Filters unwanted fine particles and debris that could clog sprinklers and spray nozzles or damage your pump. Precision molded construction, Corrosion resistant, Fiberglass reinforced, Easy grip end cap, Poly ribbed 316 stainless steel screen. Available in 20 mesh (841 microns), 50 mesh (297 microns) or 80 mesh (177 microns). Filter screen is cleanable.



Overflow: 4" OVERFLOW KIT

4" Overflow Outlet Kit with stainless steel screen blocks mosquitoes and adds almost 5" of water to the tank before overflowing. Provides connection to 4" Sch 40 PVC overflow pipe.

Call or email request for freight quote.
Because there are many possible delivery options and freight companies (depending on where you are located in the U.S.), it's best to call or email to request a freight quote. You may pick up at our location in Willow Park, TX for no additional charge.

When requesting a freight quote, please include your city, state & zip. And please indicate if the delivery address is considered "residential" or "commercial" and whether you require a lift gate on the truck or not. Send request for freight quote to: jim@rainwaterequipment.com
